American Motors eXperimental
American Motors Technical Information
These files are in Adobe Reader (.pdf) Adobe Reader is free and available for download here.
1968 AMC Service Specifications Handbook - Javelin, Rebel, Ambassador, Rambler American. Note: As a result of being introduced in Feb. of 1968 the AMX and 390 are not covered in the 1968 booklet - use the 1969 booklet for that information.
1969 AMC Service Specifications Handbook - Includes Rambler, Rebel, AMX, Javelin, Ambassador.
1970 AMC Service Specifications Handbook - Covers the Hornet, Rebel, AMX, Javelin, Ambassador.
The Service Specifications Handbooks are pocket size booklets that contain tune-up, service specifications and other technical data to include (from the 1970 TOC):
Body Identification
Model Numbers
Vehicle Identification
Model and Body Styles
Body Specifications
Tread Width and Wheelbase
Tune-up
Engine
Cooling
Electrical
Emission Control Systems
Carburetion
Clutch
Transmissions; manual, Shift Command
Brakes
Tires
Rear Axle
Steering - Front Suspension
Protective Maintenance
Capacities
Notes
Trend Setter Installation Instructions - Factory installation instructions for the Tadco Trendsetter "Side Winder" Sidepipes. Includes an ad of other Tadco items.
Technical data for 1971-1980 is listed under their respective web pages.
1968 - 1970 AMX Production Figures
1968-1969 AMC V-8 Engine Information
1968-1969 AMC V-8 Tune-Up Specifications
1970 AMC V-8 Engine Information
1970 AMC V-8 Tune-Up Specifications
1968 AMX VIN
1969 AMX VIN
1970 AMX VIN
1968 AMX Trim Codes
1969 AMX Trim Codes
1970 AMX Trim Codes
AMX and Javelin Wiring Diagram
AMX and Javelin Tachometer Wiring
AMX and Javelin Bulb Chart
AMX Valve Cover Engine Tag Codes
AMX and Javelin Door Glass Adjustment
1968, 1969, 1970 AMX Production Numbers
| 1968 AMX | 290 "Typhoon V-8" | 343 "Typhoon V-8" | 390 "AMX V-8" |
4-Speed |
525 |
415 |
2,287 |
Automatic |
484 |
902 |
2,112 |
| Total by Engine | 1,009 | 1,317 | 4,399 |
| 1968 Total Production = 6,725 | |||
| 1969 AMX | 290 "Typhoon V-8" | 343 "Typhoon V-8" | 390 "AMX V-8" |
| 4-Speed | 619 | 843 | 2183 |
| Automatic | 299 | 729 | 3620 |
| Total by Engine | 918 | 1,572 | 5,803 |
| 1969 Total Production = 8,293 | |||
| 1970 AMX | 360 V-8 | 390 "AMX V-8" | |
| 4-Speed | 747 | 901 | |
| Automatic | 836 | 1,632 | |
| Total by Engine | 1,583 | 2,533 | |
| 1970 Total Production = 4,116 | |||
Model Year Factory Installations of Selected Equipment (shown in percent) |
||||||||||||
| Option | 1968 | 1969 | 1970 | |||||||||
| Automatic | 54.6 |
61.3 |
60.0 |
|||||||||
| 4-Speed | 45.4 |
38.7 |
40.0 |
|||||||||
| Power Brakes | 77.0 |
81.4 |
84.4 |
|||||||||
| Power Steering | 68.7 |
67.4 |
70.0 |
|||||||||
| A/C | 14.4 |
21.0 |
25.6 |
|||||||||
| Tinted Glass | 52.2 |
61.8 |
n/a |
|||||||||
| Locking Differential | 73.7 |
79.2 |
82.5 |
|||||||||
| Tilt Wheel | 21.9 |
21.2 |
20.0 |
|||||||||
| Disc Brakes | 60.9 |
75.7 |
82.1 |
|||||||||
| Radio | 78.29 |
83.7 |
74.1 |
|||||||||
1968, 1969 AMC V-8 Engine Information
290 "Typhoon V-8" |
343 "Typhoon V-8" |
390 "AMX V-8" |
|
| Bore and Stroke | 3.750" x 3.280" | 4.080" x 3.280" | 4.165" x 3.574" |
| Compression Ratio | 10.0:1 |
10.2:1 |
10.2:1 |
| Maximum Brake Horse Power | 225 @ 4700 RPM |
280 @ 4800 RPM |
315 @ 4600 RPM |
| Maximum Torque (H.P. and Torque corrected to 60 F. and 29.92 Hg. atmospheric pressure.) | 300 @ 3200 RPM |
365 @ 3000 RPM |
425 @ 3200 RPM |
| Recommended Fuel | 100+ Octane |
100+ Octane |
100+ Octane |
| Oil Pressure | 10 P.S.I. @ 600 RPM |
10 P.S.I. @ 600 RPM |
10 P.S.I. @ 600 RPM |
| Cooling Capacity - Quarts, including heater | 14 |
13 | 13 |
| Radiator Cap Pressure | 14 P.S.I. |
14 P.S.I. |
14 P.S.I. |
1968, 1969 AMX Engine Tune-up Specifications - AMC V-8 Firing Order = 1-8-4-3-6-5-7-2
290 "Typhoon V-8" |
343 "Typhoon V-8" |
390 "AMX V-8" |
||
| Spark Plugs (Champion) | N-12Y | N-12Y | N-12Y | |
| Spark Plug Gap | .033" - .037" | .033" - .037" | .033" - .037" | |
| Distributer Rotation | CW @ Rotor End | CW @ Rotor End | CW @ Rotor End | |
| Distributer Point Gap | .016" | .016" | .016" | |
| Distributer Cam Angle (Dwell) | 29° - 31° |
29° - 31° |
29° - 31° |
|
| Breaker Arm Tension | 17-21 oz. |
17-21 oz. |
17-21 oz. |
|
| Condenser Capacity | .18-.23 Mfd. |
.18-.23 Mfd. |
.18-.23 Mfd. |
|
| Ignition Timing | TDC +- 1° |
TDC +- 1° |
TDC +- 1° |
|
| Fuel Pump Pressure @ 500 RPM | 5 - 6 1/2 psi |
5 - 6 1/2 psi |
5 - 6 1/2 psi |
|
| Cylinder Compession Rating (Cranking speed at Sea Level) | 145 P.S.I. |
145 P.S.I. |
145 P.S.I. |
|
| Cylinder Head Torque Foot Pounds | 90-100 |
90-100 |
90-100 |
|
| Engine Idle RPM @ Operating Temperature A/C must be "OFF" when setting Idle |
Manual Trans | 650 | 650 | 650 |
| Automatic (in Drive - SET parking brake) | 550 |
550 | 550 | |
1970 AMX Engine Information
360 "Typhoon V-8" |
390 "AMX V-8" |
|
| Bore and Stroke | 4.080" x 3.440" |
4.165" x 3.574" |
| Compression Ratio | 10.0:1 |
10.0:1 |
| Maximum Brake Horse Power | 290 @ 4800 RPM |
325 @ 5000 RPM |
| Maximum Torque (H.P. and Torque corrected to 60° F. and 29.92 Hg. atmospheric pressure.) | 395 @ 3200 RPM |
435 @ 3200 RPM |
| Recommended Fuel | 100+ Octane |
100+ Octane |
| Oil Pressure | 10 P.S.I. @ 600 RPM |
10 P.S.I. @ 600 RPM |
| Cooling Capacity (Quarts) | 13 |
13 |
| Radiator Cap Pressure | 14 P.S.I. |
14 P.S.I. |
1970 AMX Engine Tune-up Specifications
360 "Typhoon V-8" |
390 "AMX V-8" |
||
| Spark Plugs (Champion) | N-12Y | N-12Y | |
| Spark Plug Gap | .033" - .037" | .033" - .037" | |
| Distributer Rotation | CW @ Rotor End | CW @ Rotor End | |
| Distributer Point Gap | .016" | .016" | |
| Distributer Cam Angle (Dwell) | 29° - 31° |
29° - 31° |
|
| Breaker Arm Tension | 17-21 oz. |
17-21 oz. |
|
| Condenser Capacity | .18-.23 Mfd. |
.18-.23 Mfd. |
|
| Fuel Pump Pressure @ 500 RPM | 5 - 6 1/2 psi |
5 - 6 1/2 psi |
|
| Cylinder Compession Rating (Cranking speed at Sea Level) | 145 P.S.I. |
145 P.S.I. |
|
| Cylinder Head Torque Foot Pounds | 105-115 |
105-115 |
|
| Engine Idle RPM @ Operating Temperature A/C must be "OFF" when setting Idle |
Manual Trans | 650 | 650 |
| Automatic (in Drive - SET parking brake) | 600 | 600 | |
1970 Vacuum Unit |
|||
Engine CID |
Hose/s Disconnected 500 RPM |
Retard Hose connected 500 RPM or Less |
Advance Hose Connected 2000 RPM* |
360 V-8 |
5° BTDC |
4° - 6° ATDC |
30 1/2° - 37 1/2° |
390 V-8 |
TDC |
----- |
41° - 47° |
* Checked only with adjustable timing light. Adjust to ATDC spec. if equipped with dual diaphragm unit and TDC with single diaphragm unit. |
|||
1968, 1969, 1970 AMX Seat, Trim and Color Codes
1968 AMXSeat Trim and Color Availability |
Trim Type = Vinyl (Ventilair) | |||||
| Trim Colors | Black |
Tan |
Red |
|||
| "T" Codes | 831 |
832 |
835 |
|||
| 1968 Model | Bucket Seats Reclining - Standard |
|||||
| 2-Door Sports Coupe | A |
A |
A |
|||
| Stripe Color | 14 Exterior Colors |
Color Code |
Wheel Code |
|||
| White | Classic Black | 1 | 1 | * | * | * |
| Black | Frost White | 72 | 72 | * | * | * |
| White | Matador Red | 39 | 39 | * | * | * |
| Black | Saturn Blue, Metallic (light) | 43 | 45 | * | * | |
| White | Carvelle Blue, Metallic (medium) | 44 | 45 | * | * | |
| White | Blazer Blue, Metallic (dark) | 45 | 45 | * | * | |
| Black | Laurel Green, Metallic (light) | 46 | 47 | * | * | |
| White | Rally Green, Metallic (dark) | 47 | 47 | * | * | |
| Black | Tahiti Turquoise, Metallic (medium) | 48 | 48 | * | * | |
| Black | Laredo Tan, Metallic (light) | 49 | 50 | * | * | |
| White | Calcutta Russet, Metallic (dark) | 50 | 50 | * | * | |
| Black | Scarab Gold, Metallic | 52 | 52 | * | * | |
| Black | Turbo Silver, Metallic | 54 | 1 | * | * | * |
| Black | Hialeah Yellow | 58 | 58 | * | * | |
1969 AMX Seat, Trim and Color Availability
Series |
"AMX" (Std.) |
"AMX" (Opt.) |
||||
Trim |
Vinyl "Ventilair" |
Leather |
||||
| Trim Color | Charcoal | Platinum | Red | Saddle | Charcoal | Saddle |
"T" Codes |
931 | 932 | 935 | 936 | 931 | 936 |
Identify fabric with seat type |
F | F | F | F | L | L |
1969 Model |
Exterior Colors |
Bucket Seat Reclining Back Standard |
||||||
2-Door Sports Coupe |
Vinyl |
Leather |
||||||
Stripe Color |
12 Solid Colors Standard |
Body Color | Charcoal | Platnium | Red | Saddle | Charcoal | Saddle |
| Black, White, Silver Metallic | Matador Red |
39 |
* | * | * | * | * | * |
| Black, White, Silver Metallic, Red, Blue Metallic | Castillion Gray, Metallic (Medium) |
63 |
* | * | * | * | * | * |
| Black, White, Silver Metallic | Beale St. Blue, Metallic (Medium) |
64 |
* | * | * | * | * | |
| Black, White, Silver Metallic, Blue Metallic | Regatta Blue, Metallic (dark) |
65 |
* | * | * | * | * | |
| Black, White, Silver Metallic | Alamosa Aqua, Metallic (medium) |
68 |
* | * | * | * | * | |
| Black, White, Silver Metallic | Hunter Green, Metallic (dark) |
71 |
* | * | * | * | * | |
| Black, Silver Metallic, Red, Blue Metallic | Frost White |
72 |
* | * | * | * | * | * |
| Black, White | Willow Green, Metallic (Medium) |
75 |
* | * | * | * | * | |
| Black, White | Pompeii Yellow |
76 |
* | * | * | * | * | |
| Black, White | Butternut Beige, Metallic (medium) |
77 |
* | * | * | * | * | |
| Black, White | Bittersweet Orange, Metallic |
79 |
* | * | * | * | * | |
| White, Silver Metallic, Red, Blue Metallic | Black Mink, Metallic |
80 |
* | * | * | * | * | * |
1970 AMX Seat, Trim and Color Availability
Series |
"AMX" (Std.) |
"AMX" (Opt.) Leather |
|||||
Trim |
Vinyl "Ventilair" |
||||||
|
Trim Color |
Black | Blue | Red | Brown | Black | Red | Brown |
| "T" Codes | 031 | 033 | 035 | C35 | 031 | 035 | 036 |
| Identify fabric with seat type | F | F | F | F | L | L | L |
| 1970 Model | 2-Door Sports Coupe | Bucket Seats, Non-Reclining High Back Standard | |||||||||
| Vinyl | Leather | ||||||||||
Stripe Color |
14 Standard Colors |
Body Color | Black | Blue | Red | Brown | Black | Red | Brown | ||
| Black, Red | Frost White |
72 |
* | * | * | * | * | * | * | ||
| Black, White | Matador Red |
39 |
* | * | * | * | * | ||||
| Black, White | Hialeah Yellow |
58 |
* | * | * | ||||||
| Black, White | Bittersweet Orange Metallic |
79 |
* | * | * | * | |||||
| Black, White | Bayshore Blue, Metallic (medium) |
82 |
* | * | * | * | |||||
| Black, White | Commodore Blue, Metallic (dark) |
84 |
* | * | * | * | |||||
| Black, White | Mosport Green, Metallic (medium) |
86 |
* | * | * | * | |||||
| Black, White | Glen Green, Metallic, (dark) |
87 |
* | * | * | * | |||||
| Black, White | Golden Lime, Metallic |
90 |
* | * | * | * | |||||
| Black, White | Tijuana Tan, Metallic |
91 |
* | * | * | * | |||||
| Black, White | Morrocan Brown |
94 |
* | * | * | * | * | ||||
| Black, White | Sonic Silver, Metallic |
95 |
* | * | * | * | * | ||||
| Black, White | Big Bad Blue |
2 |
* | * | * | * | * | ||||
| Black, White | Big Bad Orange |
3 |
* | * | * | * | |||||
| Black, White | Big Bad Green |
4 |
* | * | * | * | |||||
| Optional "Shadow" Black (code #8) two-tonepaint treatment on hood, top of front fenders and around side windows (with Silver separating stripe) is available with all body colors. Optional "Rally" Stripe is not available with optional "Shadow" Black two-tone treatment. | |||||||||||

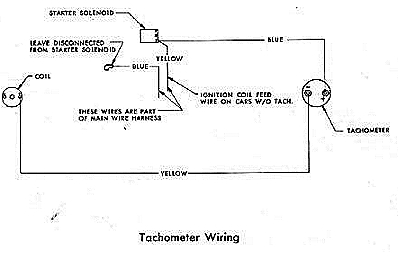

AMX and Javelin Tach Wiring
AMX Bulb Chart |
|
| Trade number | Application |
57 |
Clock or Tachometer (30-70) Glove Box (All) |
| 67 | License Plate Light |
| 89 | Trunk Light |
| 94 | Courtesy Light (Instrument Panel) |
| 158 | Instrument Illumination, Hi-Beam--Alternator, Oil Pres., Turn Signal and Brake Warning (indicator) |
| 1156 | Back-Up Light |
| 1157 | Park and Front Turn Signal, Stop, Tail, Rear Turn Signal, Hazard Warning |
| 1157A | Park & Front Turn Signal (30) |
| 1445 | Control Illumination, Cigarette Lighter, Ignition Switch, Light Switch, Wiper Switch, Gear Selector Indicator Ash Thermostat Ash Receiver |
| 1815 | Radio Dial (30-70) AM, (30-70) AM/Tape |
| 1881 | Heater and A/C Control (30-70) |
| 1893 | Radio Dial (30-70) AM/FM |
| 6012 | Headlamp (01-30-70) |
1968 AMX VIN
Ever wonder what those symbols on your AMX VIN mean? With the following information you can decode your 1968, 1969, 1970 AMX Vehicle Identification Number.
The first symbol designates the vehicle manufacturer; A = American Motors
The second symbol designates the model year; 8 = 1968
The third symbol designates the transmission type; M = Four speed manual floor shift; C = three speed automatic with floor shift.
The fourth symbol was a number designating the car line; 3 = AMX.
The fifth symbol designated body type, 9 = 2 door hard top.
The sixth symbol designated the series or class of body; as follows: 7 = AMX.
The seventh symbol was a letter designating engine type as follows: N=290 cid V-8 four-barrel; T=343 cid V-8 four-barrel; and X=390 cid V-8 four-barrel.
The following group of symbols was the sequential Serial Number and began with 100001 for cars built in Kenosha, Wis. and 700001 for cars built in Brampton, Ontario, Canada.
NOTE: For whatever reason, AMC stamped different codes on the engines valve cover tag in 1968 and 1969. 343's were stamped with a Z on the valve cover. A 390 valve cover is stamped with a W.
To confirm the correct cid for the VIN code the cid number is cast on the sides of the block in approximately 2" high numbers, they're located behind (above) the engine mounts.
1969 AMX VIN
The first symbol designates the vehicle manufacturer; A = American Motors
The second symbol designates the model year; 9 = 1969
The third symbol designates the transmission type; M = Four speed manual with floor shift; C = three speed automatic with floor shift
The fourth symbol was a number designating the car line; 3 = AMX
The fifth symbol designated body type, 9 = 2 door hard top.
The sixth symbol designated the series or class of body; as follows: 7 = AMX.
The seventh symbol was a letter designating engine type as follows: N=290 cid V-8 four-barrel; T=343 cid V-8 four-barrel; and X=390 cid V-8 four-barrel.
The following group of symbols was the sequential Serial Number and began with 100001 for cars built in Kenosha, Wis. and 700001 for cars built in Brampton, Ontario, Canada.
NOTE: For whatever reason, AMC stamped different codes on the engines valve cover tag in 1968 and 1969. 343’s were stamped with a Z on the valve cover. A 390 valve cover is stamped with a W.
Also in 1969 a Y in the VIN designates an S/S AMX with a 390 (seriously under)rated at 340hp. In 1970 the Y became the designation for the Rebel "Machine" also rated at 340 hp.
To confirm the correct cid for the VIN code the cid number is cast on the sides of the block in approximately 2" high numbers, they're located behind (above) the engine mounts.
1970 AMX VIN
The first symbol designates the vehicle manufacturer; A = American Motors
The second symbol designates the model year; 0 = 1970
The third symbol designates the transmission type; M = Four speed manual with floor shift; C = three speed automatic with floor shift
The fourth symbol was a number designating the car line; 3 = AMX
The fifth symbol designated body type, 9 = 2 door hard top.
The sixth symbol designated the series or class of body; as follows: 7 = AMX.
The seventh symbol was a letter designating engine type as follows: P = 360 cid V-8 four-barrel; and X=390 cid V-8 four-barrel.
The following group of symbols was the sequential Serial Number and began with 100001 for cars built in Kenosha, Wis. and 700001 for cars built in Brampton, Ontario, Canada.
NOTE: The valve cover tags were now stamped using the same code as the VIN.
In 1970 the Y in the VIN now designated the 340hp 390 cid Rebel "Machine".
To confirm the correct cid for the VIN code the cid number is cast on the sides of the block in approximately 2" high numbers, they're located behind (above) the engine mounts.
Deciphering the valve cover tag on AMC V/8 engines
Example: 306X15
First number: Year
0 = 1967
1 = 1968
2 = 1969
3 = 1970
4 = 1971
5 = 1972
6 = 1973
7 = 1974
Second and third numbers: Month
1 = January
2 = February
etc.
Letter= Engine size
H = 290-2bbl (67-69)
N = 290-4bbl (68-69)
H = 304-2bbl (70-up)
S = 343-2bbl (67-69)
Z = 343-4bbl (67-69)
N = 360-2bbl (70-up)
P = 360-4bbl (70-up)
W = 390-4bbl (68-69)
X = 390-4bbl (1970)
Y = 390-4bbl (1970 Machine)
Z = 401-4bbl (71-up)
Last two numbers: Day
*NOTE: some letters repeat, so refer to respective dates.
Engine build dates precede the build date of the car by as little as two days, and up to two weeks. Therefore, the example above (306X15) would be a 1970 390-4bbl built June 15th, and probably installed in the car built in the third week of June, 1970.
